AI Edge Video Server CA 8-EDG1

ChenanIoT CA 8-EDG1 features the highly integrated edge TPU processor CV186AH, delivering high performance, low power consumption, comprehensive peripheral interfaces, and strong environmental adaptability. Through diverse deep learning algorithms, it flexibly addresses scenarios such as smart cities, intelligent commerce, and smart energy, enabling edge digital empowerment.

Wishlist Compare
SKU: ChenanIoT CA 8-EDG1 Category: Brand:

Description

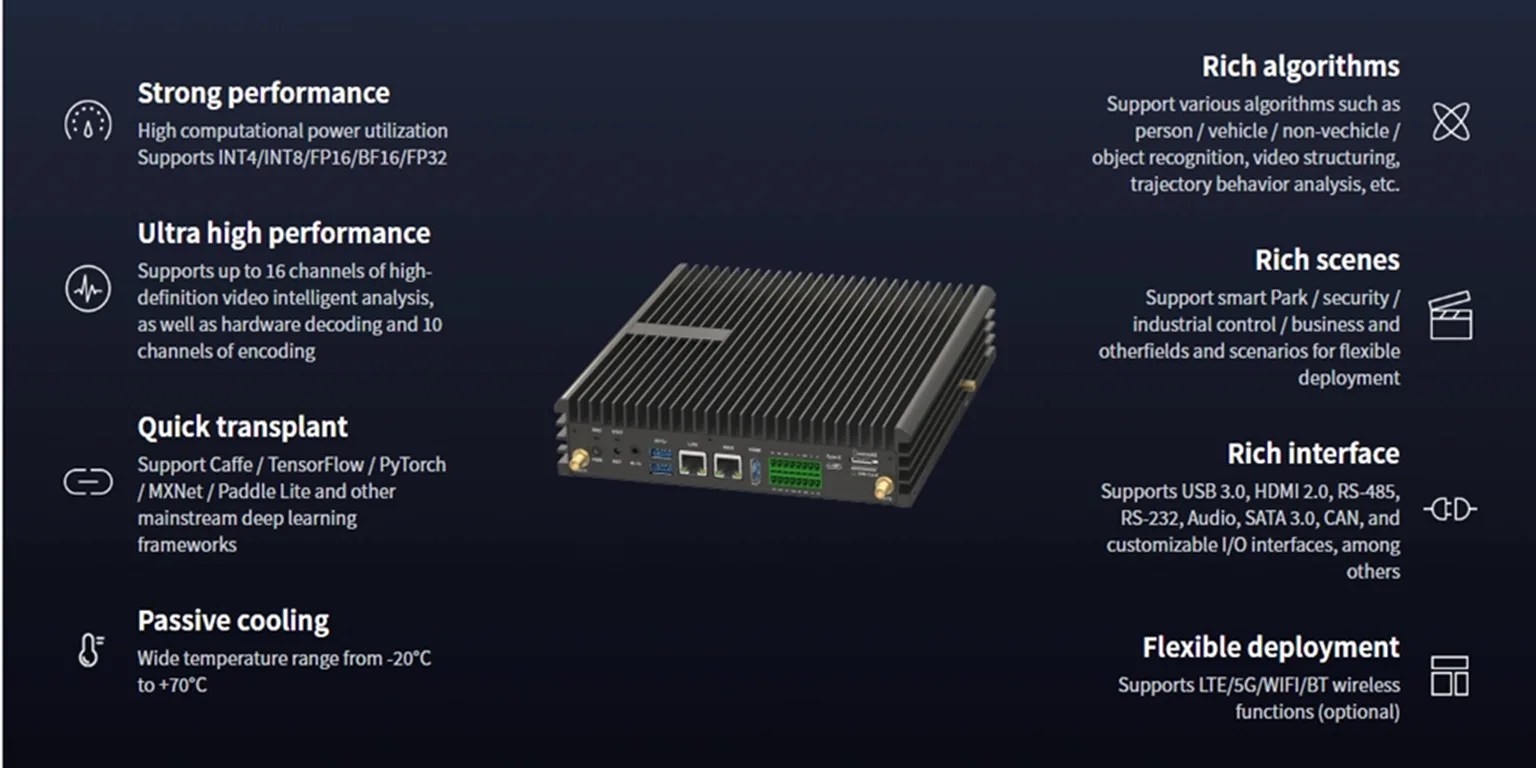

Features



Specifications

ChenanIoT CA 8-EDG1 Product Specifications

Product Model
CA 8-EDG1
Processor
6-core ARM CA53@1.6GHz
Memory
8GB
eMMC
32GB
Computing Power
Intelligent analysis of 8 channels of HD video;Supporting mixed-precision computing
Video Decoding
H.264&H.265:1080P@480fps8192 * 8192 / 8K / 4K / 1080P / 720P / D1 / CIF
Video Encoding
H.264&H.265:1080P@300fps8K / 4K / 1080P / 720P / D1 / CIF
Image Codec
JPEG:1080P@480fps, supporting up to 32768*32768
Interfaces
ETH 10/ 100 / 1000Mbps self-adaptive *2USB3.0 *2 / HDMI2.0 / Audio (in | out) / CAN / RS-232 / RS-485 / TF / GPIO / SATA 3.0
Optional Interfaces
LTE / 5G / Wi-Fi / BT
Heat Dissipation
Passive
Typical Power Consumption
12.5W
Operating Temperature
-20โ„ƒ ~ +70โ„ƒ
Dimensions
219.8mm * 200mm * 46.8mm
Protection Level
IP41
Power Interface
AC 110V~220V
