Description
Product Introduction
Specifications
ChenanIoT Product Specification Comparison Table (Standard Version vs 4G Module Version)
|
Parameters
|
Standard Version
|
With 4G Module
|
|---|---|---|
|
Product Type
|
Standard version
|
With 4G module
|
|
Hardware Configuration – CPU
|
RK-3568 Quad-core 64-bit Cortex-A55 clocked at 2.0GHZ/RK3576 Octa-core clocked at 2.2GHz/RK3588 Octa-core clocked at 2.4GHz
|
RK-3568 Quad-core 64-bit Cortex-A55 clocked at 2.0GHZ/RK3576 Octa-core clocked at 2.2GHz/RK3588 Octa-core clocked at 2.4GHz
|
|
Hardware Configuration – GPU
|
ARM Mali-G52 2EE /ARM Mali G52 MC3/ARM Mali G610 MP4
|
ARM Mali-G52 2EE /ARM Mali G52 MC3/ARM Mali G610 MP4
|
|
Hardware Configuration – NPU
|
1TOPS A hashrate/6T OPS AI hashrate
|
1TOPS A hashrate/6T OPS AI hashrate
|
|
Hardware Configuration – Memory
|
2GB/4GB/8GB/16GB/32GB DDR4
|
2GB/4GB/8GB/16GB/32GB DDR4
|
|
Hardware Configuration – Storage
|
EMMC32GB/64GB/128GB/256GB, with a maximum support of 256GB
|
EMMC32GB/64GB/128GB/256GB, with a maximum support of 256GB
|
|
Hardware Configuration – Wi-Fi
|
Wi-Fi 6 has 2.4G/5G built-in
|
Wi-Fi 6 has 2.4G/5G built-in
|
|
Hardware Configuration – Bluetooth
|
BT5.3
|
BT5.3
|
|
Operating System
|
Android12/13/14, Linux/ubuntu/Debian
|
Android12/13/14, Linux/ubuntu/Debian
|
|
Decoding Resolution
|
Supports up to 4K/60Hz
|
Supports up to 4K/60Hz
|
|
3G/4G
|
PCI-E standard interface, support Mobile, Unicom, Telecom (optional)
|
PCI-E standard interface, support Mobile, Unicom, Telecom (built-in 4G module)
|
|
Network Support
|
4G (optional), Ethernet, Wi-Fi/Bluetooth, wireless peripheral expansion
|
4G, Ethernet, Wi-Fi/Bluetooth, wireless peripheral expansion
|
|
4G Module
|
None
|
Built-in 4G module
|
|

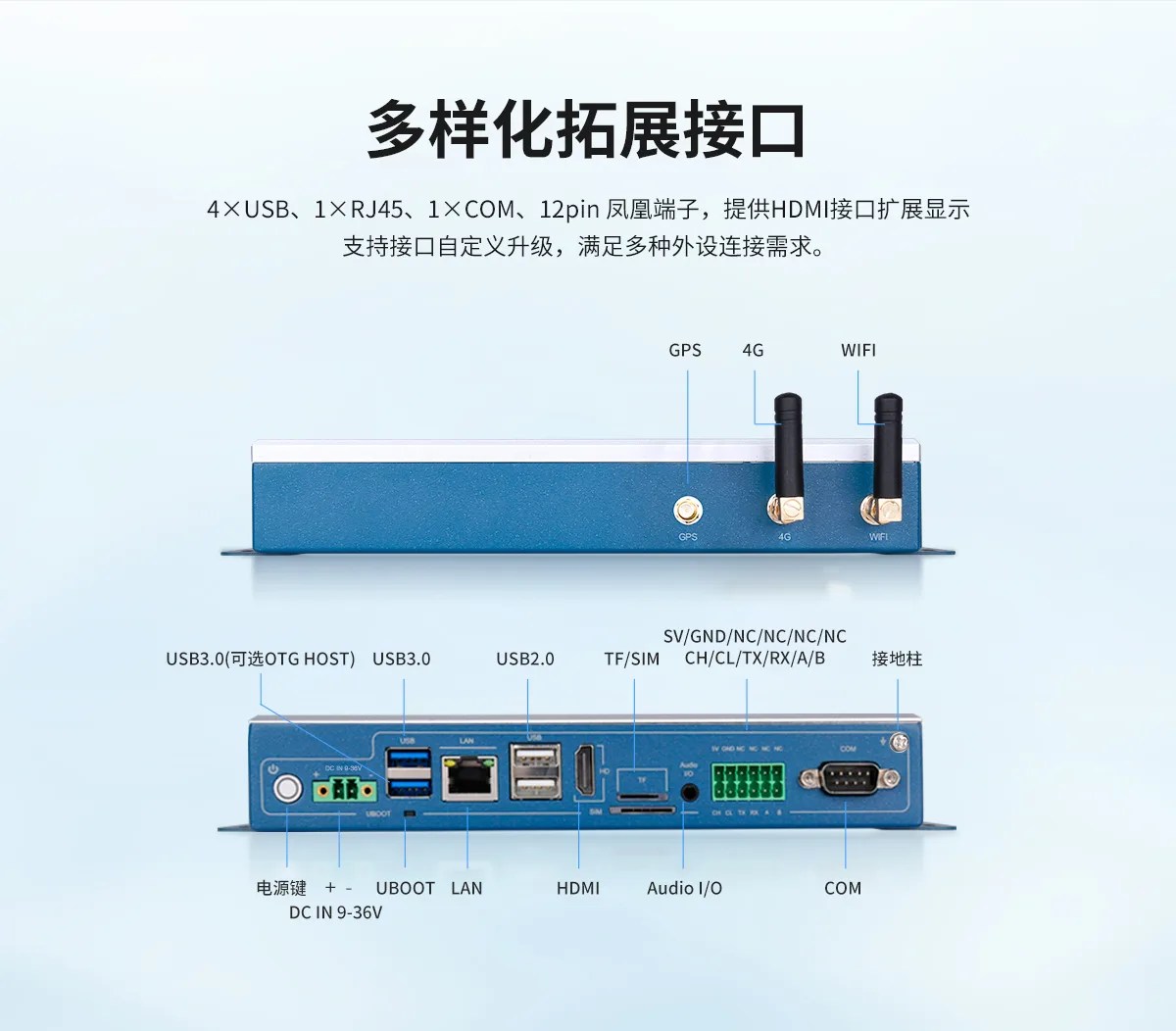

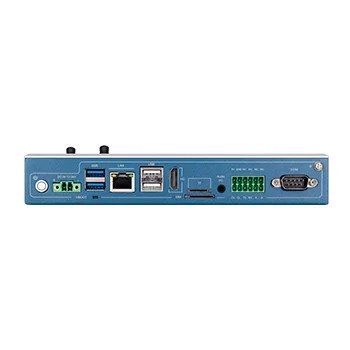

Interface Parameters – Power Switch
|
1*POWER
|
1*POWER
|
|
Interface Parameters – Power Interface
|
1*3.81-2P phoenix terminal, support 12-36V wide voltage power supply (optional upgrade DC2.0*1)
|
1*3.81-2P phoenix terminal, support 12-36V wide voltage power supply (optional upgrade DC2.0*1)
|
|
Interface Parameters – Phoenix Terminal
|
1*12P Phoenix Terminal (232/485/CAN/NC, see specification for details)
|
1*12P Phoenix Terminal (232/485/CAN/NC, see specification for details)
|
|
Interface Parameters – USB
|
2*USB3.0 (of which 1PCS supports OTG), 2*USB2.0 (optional upgrade to Gigabit RJ45), optional upgrade to 6 USB2.0 channels
|
2*USB3.0 (of which 1PCS supports OTG), 2*USB2.0 (optional upgrade to Gigabit RJ45), optional upgrade to 6 USB2.0 channels
|
|
Interface Parameters – UBOOT
|
1*UBOOT
|
1*UBOOT
|
|
Interface Parameters – HDMI
|
Support HDMI data output, up to 4K
|
Support HDMI data output, up to 4K
|
|
Interface Parameters – Ethernet
|
1*RJ45 Gigabit Ethernet Port (Optional RJ45 Gigabit*2)
|
1*RJ45 Gigabit Ethernet Port (Optional RJ45 Gigabit*2)
|
|
Interface Parameters – Audio Interface
|
1*Audio L/O, support audio input and output, headphone holder: 3.5mm standard interface
|
1*Audio L/O, support audio input and output, headphone holder: 3.5mm standard interface
|
|
Interface Parameters – SIM Card
|
1*SIM, SIM card standard interface Support various standards (depending on 3G/4G module)
|
1*SIM, SIM card standard interface Support various standards (matching built-in 4G module)
|
|
Interface Parameters – TF Card
|
Support TF expansion card (1*TF card slot)
|
Support TF expansion card (1*TF card slot)
|
|

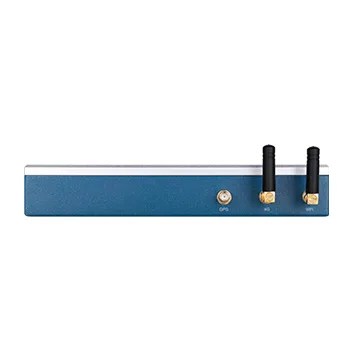

Interface Parameters – GPS
|
External GPS (optional)
|
External GPS (optional)
|
|
Interface Parameters – Serial Port
|
It comes standard with 1*DB9 232 serial port (232/TTL interchange) and optional upgrade to 4*232
|
It comes standard with 1*DB9 232 serial port (232/TTL interchange) and optional upgrade to 4*232
|
|
Interface Parameters – Other
|
Optional upgrade 3*RS485, 2*TTL, optional 1″ CAN, optional support 12 GPIO, 1 AD
|
Optional upgrade 3*RS485, 2*TTL, optional 1″ CAN, optional support 12 GPIO, 1 AD
|
|
Reliability Parameters – Operating Temperature
|
-20°C-70°C
|
-20°C-70°C
|
|
Reliability Parameters – Storage Temperature
|
-30°C-80°C
|
-30°C-80°C
|
|
Reliability Parameters – Relative Humidity
|
95% non-condensing
|
95% non-condensing
|
|
Other Parameters – Power Input
|
9V-36V power input
|
9V-36V power input
|
|
Other Parameters – Power Adapter
|
24V/2.5A DC Adapter (Optional)
|
24V/2.5A DC Adapter (Optional)
|
|
Other Parameters – Body Quality
|
Aluminum alloy
|
Aluminum alloy
|
|
Other Parameters – Body Color
|
Silver + dark blue
|
Silver + dark blue
|
|
Other Parameters – Bare Metal Weight
|
1.0kg
|
1.0kg (excluding 4G module weight)
|
|
Other Parameters – The Weight of the Whole Machine
|
1.37KG
|
1.37KG + 4G module weight
|
|
Installation Method
|
Wall-mounted, tabletop, rack-mounted
|
Wall-mounted, tabletop, rack-mounted
|
|
Warranty
|
1 years
|
1 years
|
